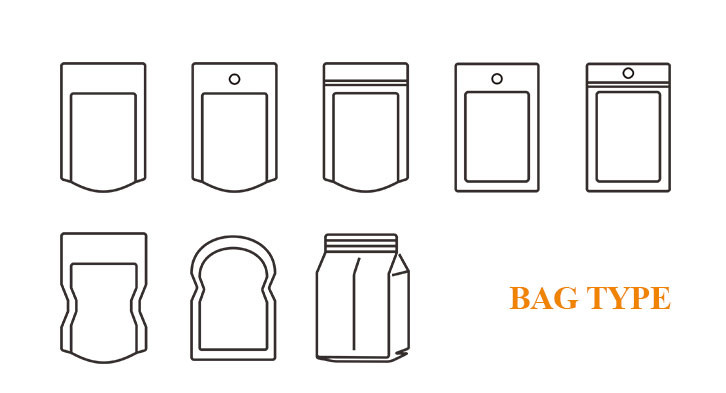

Rotary(Vacuum)Bag Packaging Machine Bag Type
- stand-up bags
- stand-up punching bag
- corner pocket
- ordinary sealing bag
- backpack
- doypack
- doypack shape
- flat pouch shape
- stading pin bag
Rotary(Vacuum)Bag Packaging Machine Main Function & Features
1.Replacing traditional manual packaging, the rotary bag packaging machine has achieved packaging automation, improved production efficiency and significantly reduced the product cost. The whole equipment is operated by one person only, greatly saving the labor cost.
2.Equipped with auto-monitoring device, the machine can check the air pressure, temperature controller breakdown, opening status of the pouches to determine if the machine is in normal condition. It can also control the code printer, filling and hot-sealing device to avoid wasting of bags and products.
3.Fully-automated rotary vacuum poucher is able to meet a variety of packaging needs and cab be used with other equipment.
4.Fully-automated rotary vacuum poucher consists of two separate rotary parts (filling system and vacuum system)with filling system in intermittent operation and vacuum system in continuous operation.
Rotary(Vacuum)Bag Packaging Machine TY-8S Specifications:
| Model | TY-8S |
| Product Name | Rotary(Vacuum)Bag Packaging Machine |
| Bag Size | 150-380(L)*100-200(W)mm |
| Bag Type | flat bags, aluminum foil bags, composite flat bag |
| Packaging Speed | 20-55 BPM |
| Powder Supply | 3 phase 380V AC±10% 50Hz |
| Use Power | 2.0kW/unit |
| Air Consumption | 5-8kg f/cm³, Air consumption:0.4m³/min |
| Operating Noise | Within 80db (within 1m) |
| Bag Opening Method | Vacuum bag opening |
| Output Function | Chute conveying |
| Alarm State | 1.No bag or material,refuse to seal
2.Equipment overload alarm
3.Low air pressure alarm |

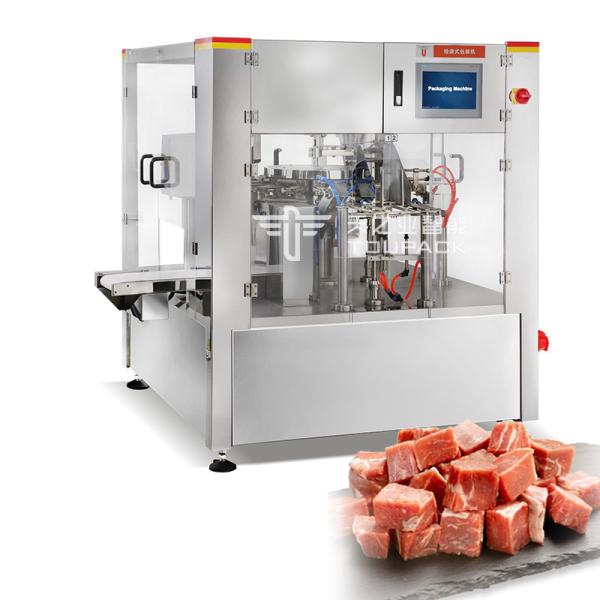

Rotary(Vacuum)Bag Packaging Machine Product Photo:
Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases
Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea
Standard export port:
Zhongshan Port
Product Tags:
|
|
Automatic Rotary Premade Bag Vacuum Packing Machine for Meat Filling Sealing Pre-made Bag Vacuum Packing Machine Images
|
